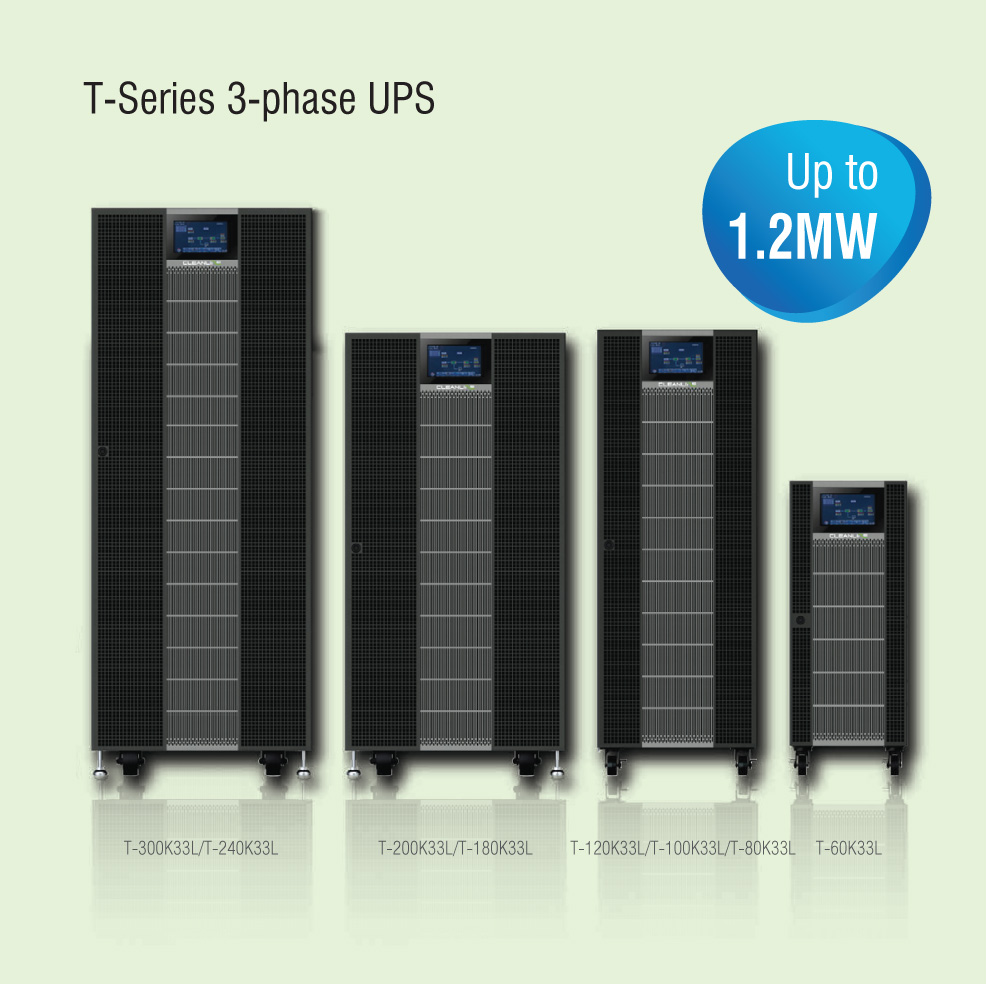

GENERAL DATA
• T-100K33L 100kVA/90kW
• T-120K33L 120kVA/108kW
• T-160K33L 160kVA/144kW
• T-200K33L 200kVA/180kW

KEY Features:
•True double conversion with DSP technology
Double conversion between input/output, battery and
bypass are totally isolated power line noise, spike and
transients, keeping power faillure away from your critical loads.
•Output power factor 0.9
For critical applications, this 3-phase online UPS with
output power factor 0 ensures higher efficiency and
advanced performance.
•Active power factor correction in all phases
Power factor correction is active in all phases and
it can improve the efficiency of input.
•50Hz/60Hz frequency converter mode
Lock output frequency at 50Hz or 60Hz to suit power
sensitive equipments.
•ECO mode operation for energy saving
ECO mode improves the efficiency up to 98% to cut
energy usage & cost. In this mode, loads are supplied
by the mains directly. While mains faillure, the UPS will
constantly supply the power to the connected device
without any interruption.
•Emergency power off function (EPO)
In case of any emergency and fire, the EPO control mechanism
can instantly shut down the system.
•Optional parallel operation with common battery
The system can be operated in parallel, increasing the capacity
and performance. Besides, this parallel UPS system can share
common battery packs which might greatly reduce the expense
and reach the same performance.
•Smart battery charger design to optimize battery performance This UPS is equipped. with 3-stage charger for optimize battery
performance. This feature extends the useful service life of
battery and optimizes battery recharge time.
When UPS transfer to line mode from battery,
the battery current reduces slowly and AC current increase slowly.
•Power walk-in function

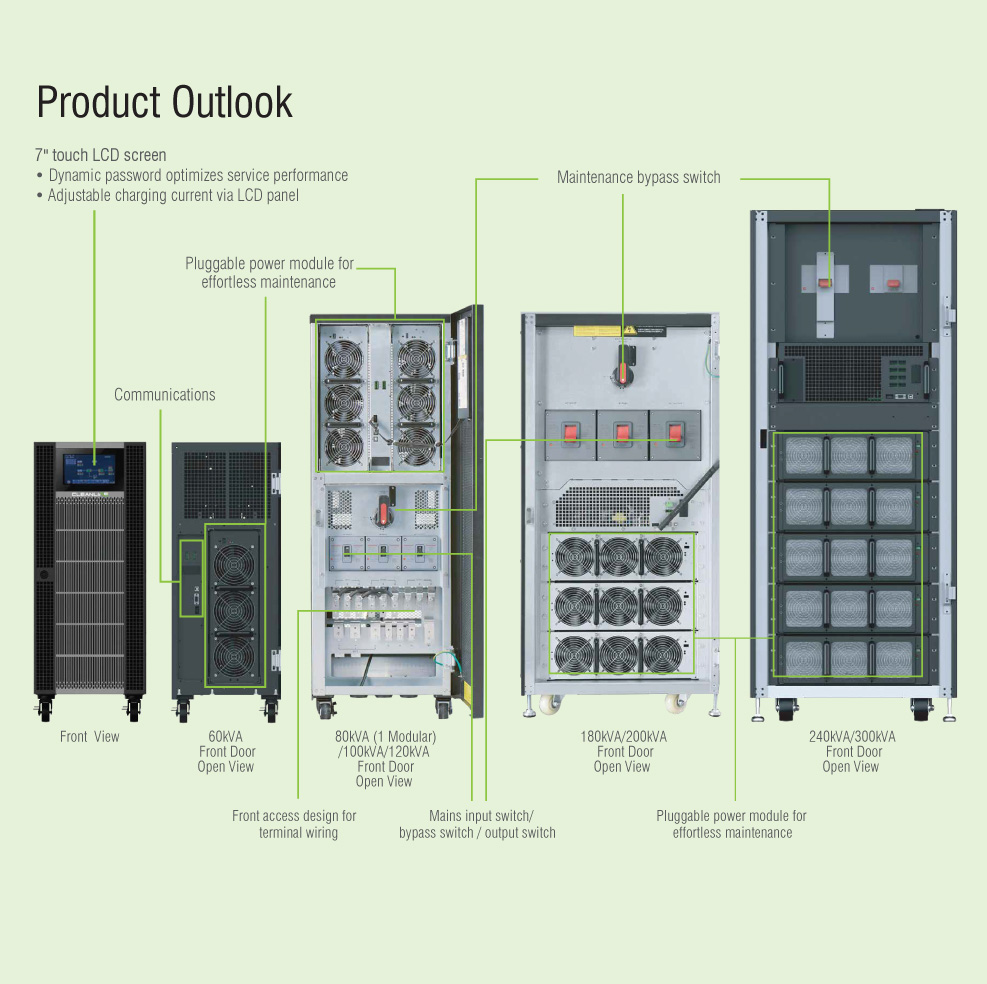

•10” touch LCD for T-100K33L-T-200K33L models
