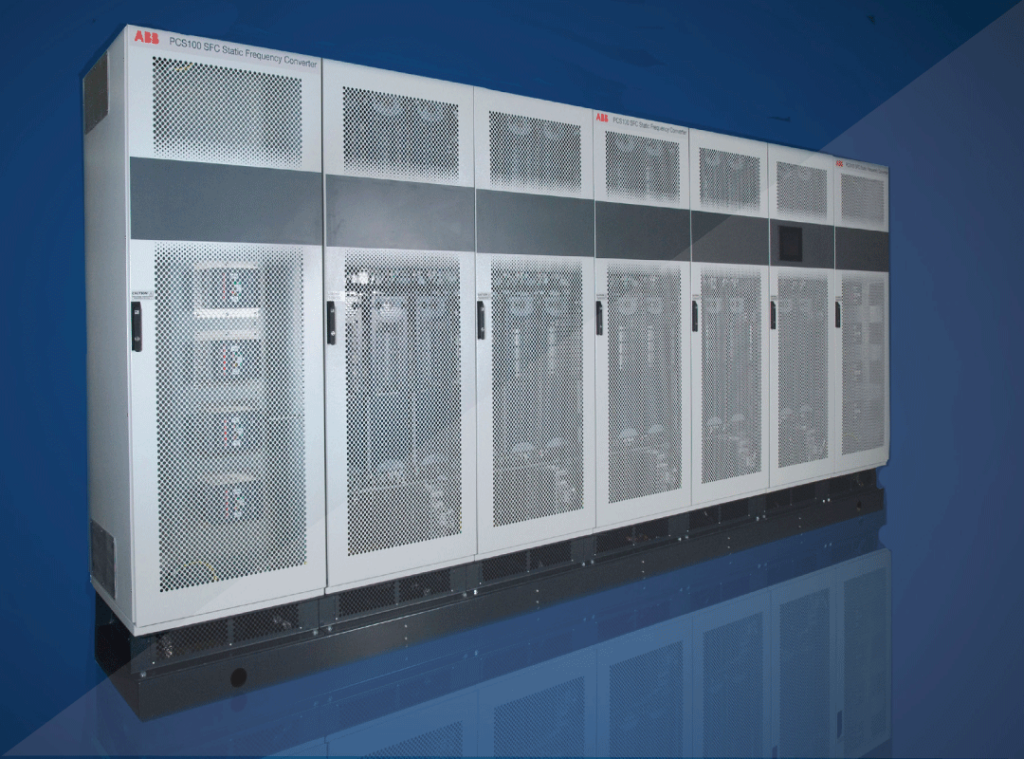

Static Frequency Conditioning

The PCS100 SFC allows connection of 60 Hz powered

– Aequipment to a 50 Hz supply network and 50 Hz powered equipment to
a 60 Hz supply network. Additionally the PCS100 SFC can convert
the supply voltage to a different voltage to match the requirement of the load.

Typical applications
– 50 to 60 Hz or 60 to 50 Hz industrial applications
– Dockside converter allows generators to be turned off while at port to save fuel
and eliminate pollution
– Replacement of motor generator sets
– As a clean power supply to isolate an unstable grid from a critical load

Features
– High efficiency power conversion
– Clean sinewave output voltage
– Unity power factor, sinewave, active rectifier design
– Built-in module redundancy without interruption of operation
– Fully isolated AC connection using an output transformer
– Wide range of voltages available; 50 Hz and 60 Hz
– Small footprint design
– Touch screen colour graphic display (GDM)
– Internal web server and Modbus TCP allows remote monitoring
– Output cable voltage drop compensation
– Seamless generator change over standard (synchronization)
– Generator emulation and load sharing

What makes PCS100 SFC better than alternative solutions
– N+1 modular redundancy for mission critical applications
– Lowest Total Cost of Ownership
– Minimal spares required
– Easy paralleling to other voltage sources using droop
