I Power Battery LP12-5.0 (12V 5.0Ah)
- แบตเตอรี่ชนิดMaintenance Free Battery
- Sealed Lead-acid Battery (SLA Battery) หรือ Valve Regulated Lead Acid Battery (VRLA Battery)
- เป็นแบตเตอรี่แห้ง แบบปิดผนึก ไม่ต้องเติมน้ำกลั่น
คลังเก็บ: product
PCS100 UPS-1, 150kVA to 3000kVA
The ABB PCS100 UPS-I is a high performance high efficiency
UPS system that ensures protection from power quality
events, enabling continuous power supply to modern industrial
processes.
To supply continuous power during utility events the PCS100
UPS-I uses a modular energy storage and inverter system.
The energy storage is either batteries or ultracapacitors
with the choice of technology dependent on the autonomy
required. Battery systems can deliver autonomy up to several
minutes. Ultracapacitors provide seconds of coverage for short
power quality events, which are the most common problems
encountered. Ultracapacitors have extremely high power
density and long lifetime resulting in a very compact and low
maintenance solution.
Harsh electrical environments are often found in modern
industry. The PCS100 UPS-I uses a robust high speed power
electronic disconnect switch to interface from the utility to the
load. The modular inverter construction and failsafe electro-
mechanical bypass provides the highest system availability.
Coupled with the small footprint and easy serviceability, this
low maintenance, high efficiency industrial UPS is the solution
for all power protection applications.
Semiconductor fabrication, test and assembly lines
Flat panel and LCD production lines need to be in operation 24/7 in order to meet today’s demands. ABB have installed many UPS-Is, that amount to hundreds of MVA at leading companies like, Samsung and many other LCD manufacturing plants worldwide.
High-speed packaging lines
Voltage variations in high-speed packaging lines cause major disruptions. The PCS100 UPS-I is protecting many high speed
packaging lines, including a dairy operation in Washington DC, that produces several million “one time use” plastic coffee
creamers per day.
Medical
To ensure that production at multi-billion dollar companies is not brought to a standstill by power failures, voltage sags and
other electrical disruptions, power protection is needed. ABB’s PCS100 UPS-I is protecting major medical suppliers like B.Braunfrom such events.
Cable manufacture
Contact manufactures such as ABB’s specialist cable factory at Karlskrona, Sweden know the impact of an unplanned shutdown on their operation and invested in two high capacity UPS-I. The UPS-I secure the factory’s operations against seasonal weather related utility disturbances along with less predictable voltage events caused by accidents.
Data centers HVAC and servers
PCS100 UPS-Is protects data centers and servers from voltage sags and surges. For example, the PCS100 UPS-I is supporting one of the Swiss government data centers with
emergency power supply and a major data center based in Memphis, USA.
Aerospace application
Carbon fiber is extensively used in the aerospace industry. The PCS100 UPS-I protects the production of the carbon fibers,
ensuring quality and yield requirements are met. Carbon fiber is the base fiber for all carbon composites.

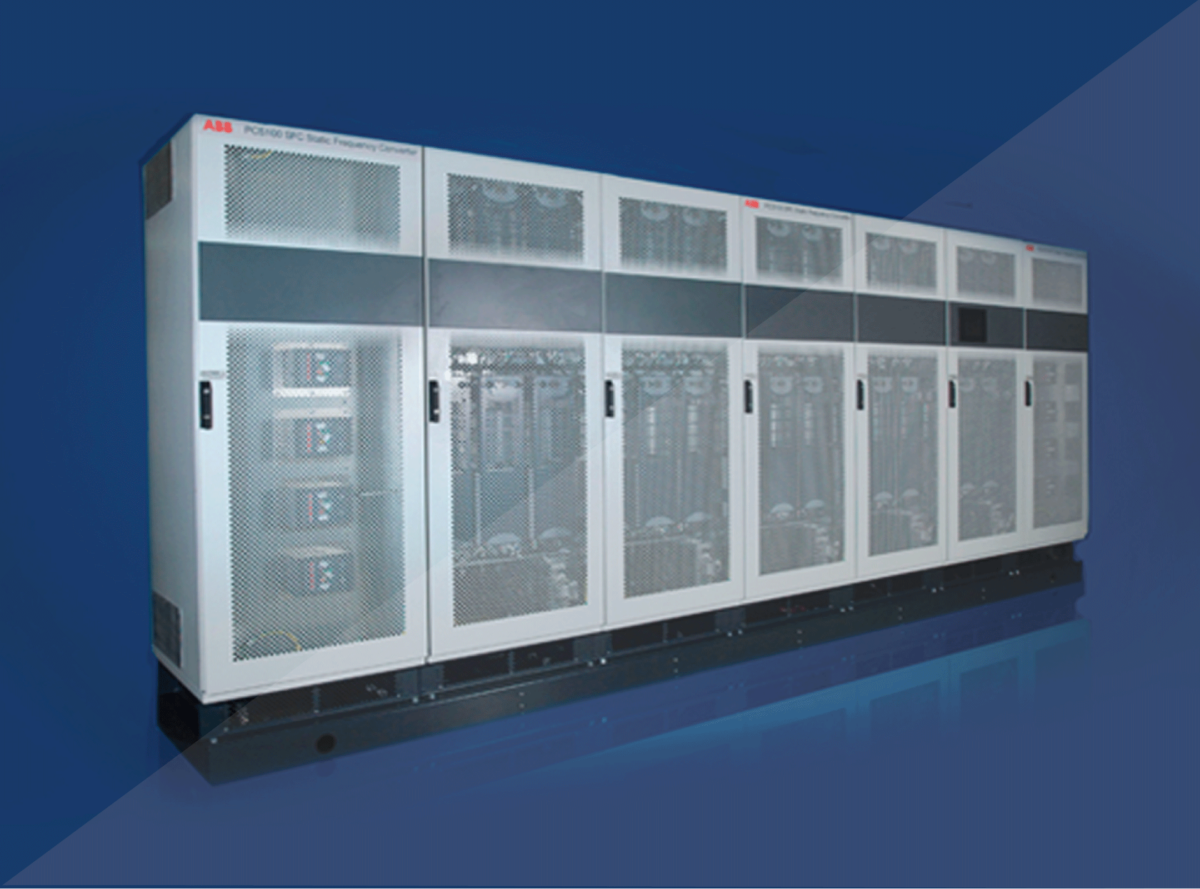

The PCS100 SFC allows connection of 60 Hz powered
– Aequipment to a 50 Hz supply network and 50 Hz powered equipment to
a 60 Hz supply network. Additionally the PCS100 SFC can convert
the supply voltage to a different voltage to match the requirement of the load.
Typical applications
– 50 to 60 Hz or 60 to 50 Hz industrial applications
– Dockside converter allows generators to be turned off while at port to save fuel
and eliminate pollution
– Replacement of motor generator sets
– As a clean power supply to isolate an unstable grid from a critical load
Plant relocation
PCS100 SFCs can be tailored not only for port and marine solutions, but can also be designed to suppot major transportation projects. For example a PCS100 SFC supported a textile company’s relocation from Italy to Mexico.
Onboard vessels
Two SFCs conditioning power from the onboard shaft generator to allow 35-65 Hz operation.
Industrial applications – FPSO
Floating platform storage and offloading (FPSO) operations are typical for the oil and gas industry. ABB have delivered systems worldwide such as, Armada D1 (previously known as the Monte Umbe vessel), and NKOSSA II off the coast of the Congo, containing a 3300 kVA PCS100 SFC.
Shore-to-ship (ports and shipyards)
Being the Official Supplier to Emirates Team New Zealand (ETNZ) 2013, ABB supplied a PCS100 SFC during the Louis Vuitton Cup and the America’s Cup. ABB have supplied many PCS100 SFCs for shore-to-ship (S2S) applications, mostly in the range of 800–2000 kVA, however have supplied up to 8 MVA. Multiple units are often installed allowing them to be paralleled or used individually.
Surge Protection Systems
Effective protection for sensitive electronics
Combination arrestor V50, 3-Pole+NPE 280V
Surge Protection Systems
Effective protection for sensitive electronics
Combination arrestor V50,1-Pole+NPE 280V
GENERAL DATA
• UPPower 30U-90
• UPPower 42U-120
• UPPower 30U-120
• UPPower 30U-180
• UPPower 42U-210
Features
• High efficiency online double conversion technology
• IGBT technology
• High scalability
• Unity output power factor
• Modular design lowers MTTR and hot swappable
• N+1 or N+X parallel redundancy for power guarantee with up to 4 units
• Ease of installation and maintenance
• Flexible battery configuration adapts different applications
• Adjustable charging current
• High overload capability
• Graphic 5.7” LCD design for easy management
• Emergency power off (EPO) Switch
• Automatic bypass and manual maintenance bypass is provided
• Event log 500 evevt
• Output dry contact 6 dry contact is adjustable NO or NC
• Standards and Approvals : ISO 9001, ISO 14001 & TIS. 1291 Part 1-2553, TIS. 1291 Part 2-2553, TIS. 1291 Part 3-2555
Source Transfer Switch (STS)
This STS product is designed with two independent power inlets to supply power to the load from a primary power source. Should primary power source fails, the secondary will automatically back up the connected equipment without any interruption. The transfer time from one line to another is seamless to the connected equipment. After switching to a secondary power source, the STS can also switch power back to the primary input when power to the primary input is restored.
รุ่นและขนาด
• TR-10K31 10kVA/9kW
• TR-15K31 15kVA/13.5kW
• TR-20K31 20kVA/18kW
คุณสมบติทั่วไป
•เป็น UPS ชนิด True On-line Double Conversion ให้กระแสไฟฟ้าที่คงที่และต่อเนื่องตลอดเวลา
• ไมโครโปรเซสเซอร์ควบคุมการทำงานทั้งหมด เพื่อความเที่ยงตรงของไฟฟ้าขาออก
• แรงดันไฟฟ้าขาเข้า 220 Vac +/- 25% (Full load)
•แรงดันไฟฟ้าขาออก 220, 230 & 240 Vac +/- 1% (สามารถเลือกแรงดันไฟขาออกได้)
•สัญญาณไฟฟ้าขาออกของภาค Inverter เป็น Pure Sine Wave
• สำรองไฟฟ้าได้ประมาณ 10-30 นาที (ขึ้นอยู่กับอุปกรณ์)
•สามารถเพิ่มระยะเวลาการสำรองไฟฟ้าด้วยการพ่วงแบตเตอรี่ได้ (Options)
•สามารถชาร์จแบตเตอรี่ได้โดยไม่จำเป็นต้องเปิดเครื่อง และสามารถเปิดเครื่องได้โดยไม่ต้องมีไฟ AC INPUT (DC Power On)
• มีสัญญาณไฟ LCD เตือนบอกสภาวะการทำงาน : UPS On, On-line, battery mode, bypass mode & alarm
•มีสวิตฉุกเฉินสำหรับปิดการทำงานของเครื่องสำรองไฟฟ้า (Emergency power off)
•สามารถควบคุมการเปิดปิดปลั๊กไฟขาออกเป็นชุดๆ ได้เพื่อประโยชน์ในการเพิ่มระยะเวลาสำรองไฟฟ้า
•สามารถเลือกให้เครื่องสำรองไฟฟ้าทำงานในโหมดประหยัดพลังงานได้ (High efficiency mode)
•รองรับการใช้งานผ่านพอร์ตสัญญาณ RS232, USB PORT สำหรับเชื่อมต่อกับคอมพิวเตอร์ผ่านโปรแกรม ViewPower สำหรับตรวจสอบและควบคุมการทำงานของเครื่องสำรองไฟฟ้า (UPS)
•รองรับการใช้งานร่วมกับ SNMP Card เพื่อความสะดวกในการควบคุมการทำงานของ UPS ผ่านระบบ Network
•ผลิตภัณฑ์มาตรฐาน ISO 9001, ISO 14001 และ มอก. 1291 เล่ม 1-2553, มอก. 1291 เล่ม 2-2553, มอก. 1291 เล่ม 3-2555
