GENERAL DATA
• System power range 100kW -3MW
Conceptpower DPA 500
Conceived for medium-sized and large data centers, ABB’s Conceptpower DPA 500 modular
uninterruptible power supply (UPS) fulfills power requirements from 100 kW to 3 MW and
provides maximum availability for those who aim for zero downtime as well as a low cost
of ownership.

Total vertical and horizontal scalability
The Conceptpower DPA 500 delivers power protection from 100 to 500 kW (one
to five modules) in a single cabinet (vertical scalability). Cabinets can operate in
a parallel configuration to build a system of up to 3 MW (horizontal scalabiltiy).
Total vertical and horizontal scalability
The advanced UPS design of Conceptpower DPA 500 provides the highest
degree of protection in critical applications where the load must be fed with
quality power. This UPS system utilizes decentralized parallel architecture and
ensures the highest level or reliability and availability with true redundancy
across the modules.

Further highlights

• 99.9999% (6 nines) availability
• Decentralized Parallel Architecture
• Replace or add modules with no downtime)
• Short mean time to repair
• No single points of failure
• Cost effective “right-sizing”
• Scalable up to 3 MW
• Vertical and horizontal scalability
• Low total cost of ownership
• Up to 96% true online efficiency
• Eco-mode efficiency ≥ 99%
• Small footprint / high power density
• Unity power factor (kW = kVA)
• Low input harmonic distortion (THDi < 3.5%)
• Efficient service concept
• Simple power upgrade
• Fast maintenance
• Reduced spare parts needed
• Full front access

GENERAL DATA

• Conceptpower DPA (10kVA-250kVA)
50 kW – 1,500 kW

The Conceptpower DPA is a high-power, modular
UPS system designed for today’s critical high-density
computing environments. The UPS is built using true
online double conversion technology and delivers highquality
power. When combined with complete network
integration software and communication connectivity,
the Conceptpower DPA provides a comprehensive,
easy-to-integrate power protection for data centers and
network environments.

The Conceptpower DPA is based on ABB’s unique and
proven Decentralized Parallel Architecture DPATM. DPA means
that each UPS module contains all the hardware and software
required for full system operation. They share no common
components. The major benefit of a DPA system is very high
power availability. Each UPS module has its own independent
static switch, rectifier, inverter, logic control, control panel
and battery charger. Even the batteries can be configured
separately for each module if required. With all of the critical
components duplicated and distributed between individual
units, potential single points of failure are eliminated. System
uptime is further maximized by the true safe-swap modularity
of the modules (easy replacement during system operation)
which allows the simple addition or removal of modules
without the need to bypass the UPS.

Conceptpower DPA modules can be connected in parallel
configuration to provide redundancy or to increase the
system’s total capacity. The Conceptpower DPA delivers
power protection from 10 to 250 kVA (one to five modules)
in a single cabinet. Cabinets can operate in parallel
configuration to build a system of up to 1.5 MVA.

Further Conceptpower DPA highlights
•  Power density of up to 342 kW / m2 saves floor space
•  Near-unity input power factor and low input harmonic
distortion reduce running costs
•  Safe-swap modules maximize availability and minimize
upgrade costs

GENERAL DATA
• DPA UPScale ST 10 – 200 kW

Best -in class class modular UPS ensuring business continuity

ABB’s DPA UPScale ST S2 is a modular UPS designed for low-medium power
applications. The UPS offers all-in-one power protection solution that includes
frame, UPS, battery and communications. The system delivers power
protection from 10 kW to 200 kW in a single frame and growing mid-size
infrastructures, it can be paralleled horizontally to increase the capacity up to
400kW.This fully scalable and easily maintained UPS gives you unparalleled
uptime and energy efficiency.

Further highlights
• Decentralized Parallel Architecture
• 99.9999% (6 nines) availability
• Redundant capacity (N+1) per frame
• Full vertical and horizontal scalability up to 400kW
• Best-in class efficiency performance 96%
• Small foot print with maximum power density 472kW/m2
• Fast maintenance and seviciability

With DPA technology each UPS module has its own independent
• logic control
• control panel
• rectifier
• inverter
• battery
• static bypass

GENERAL DATA
• RI 10 20kVA/20kW
• RI 11 20kVA/20kW
• RI 12 20kVA/20kW
• RI 20 40kVA/40kW
• RI 22 40kVA/40kW
• RI 24 40kVA/40kW
• RI 40 80kVA/80kW

KEY Features:

DPA UPScale RI – always protecting your critical load

The rack-independent DPA UPScale RI (rack-independent) is one of the most customizable
is one of the most customizable UPS systems on the market and provides the best technical and
commercial solutions to meet individual power protection needs. The three-phase and modular
UPS system can be integrated into any 19″ cabinet, regardless of the rack’s manufacturer.

With DPA technology each UPS module has its own independent
• Logic control
• Control panel
• Rectifier
• Inverter
• Battery charger
• Static bypass
• Control designed to with stand all kinds of loads
• Variety of communication option available

Further highlights
• 19″ rack compatible
• Unity output power factor (kW = kVA)
• Best in class compactness (40 kW = 0.33 m2, 122 kW/m2)
• Input power factor PF = 0.99
• Up to 96% efficiency in double conversion mode and 98% efficiency in eco-mode
• Ripple-free battery charging increases battery life
• Wide input voltage range (–20%/+15%) at full load
• Up to 4 modules in parallel configuration

GENERAL DATA

• PW33-160K 160kVA/160kW
• PW33-200K 200kVA/200kW
• PW33-250K 250kVA/250kW
• PW33-300K 300kVA/300kW
• PW33-400K 400kVA/400kW
• PW33-500K 500kVA/500kW

High efficiency and lowest total cost of ownership

The PowerWave 33’s exceptional design meets all modern requirements of building and
operating energy-efficient and environmentally friendly data centers. The PowerWave 33employs
transformerless double conversion UPS topology and is avaliable from 60 to 500kW
The PowerWave 33 boasts features nad options that cater to customers” needs, including the
flexibility to accommodate an increase in power requirements and to provide N+1 parallel
redundancy. Easy installation and maintenance form the basis of the core design for this standalone
UPS system with front access to electrical connections and fully serviceable components.
• Leading efficiency of up to 96% in double conversion mode minimizes running costs
• Maximized output active power (kVA = kW)
• Low input current total harmonic distortion (THDi)
• Near-to-unity input power factor
• Advanced scalable architecture up to 5MW
• Full front access maximizes system serviceability
• Control designed to with stand all kinds of loads
• Variety of communication option available

Further highlights
• Up to 96% effciency in double conversion mode minimizes running costs
• Maximized ouput active power (kVA = kW)
• Excellent input performance minimizes installation costs
• Power density up to 636kW / m2 minimizes space requirements
• Full front access maximizes system seriveability

GENERAL DATA

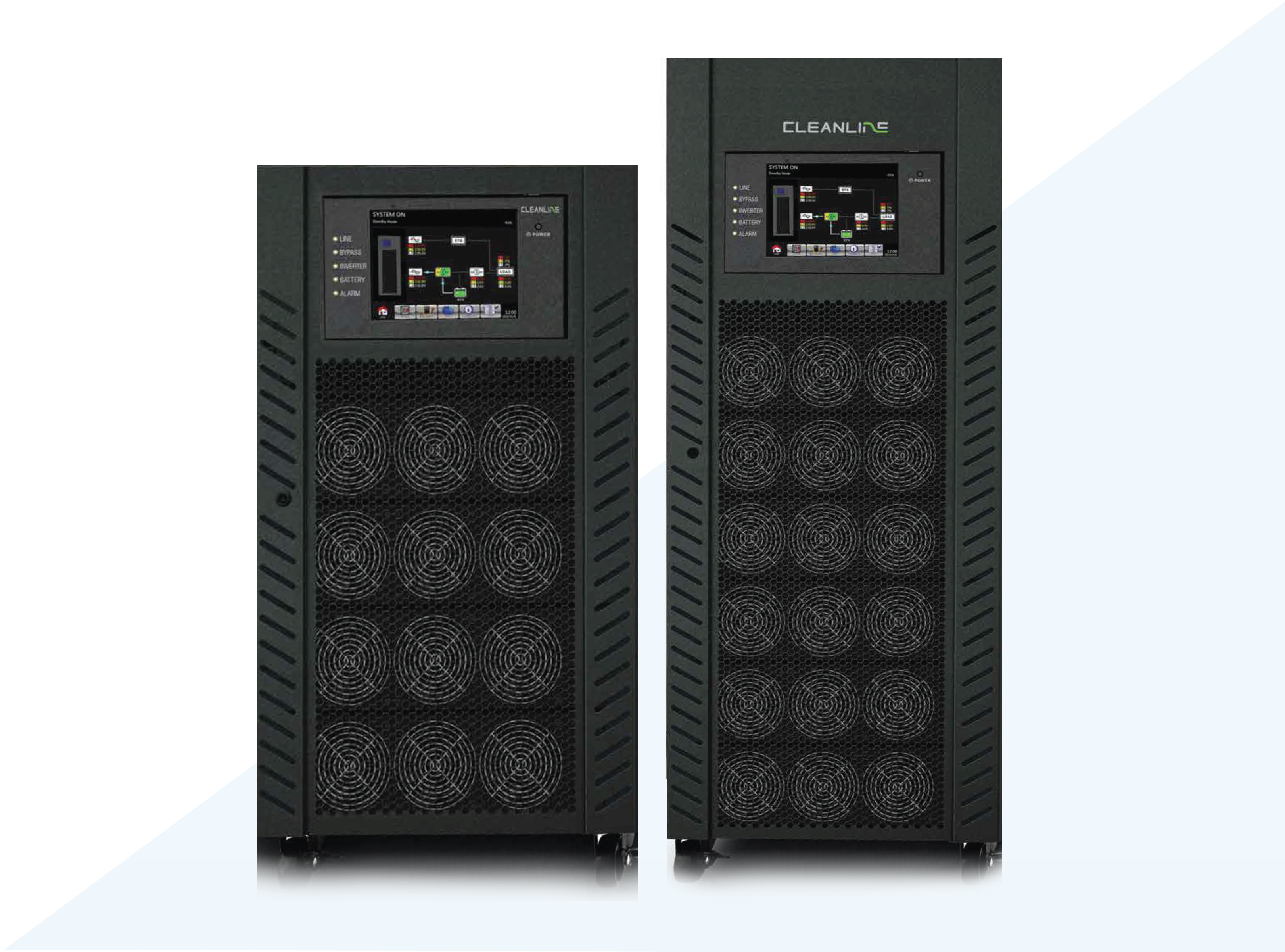

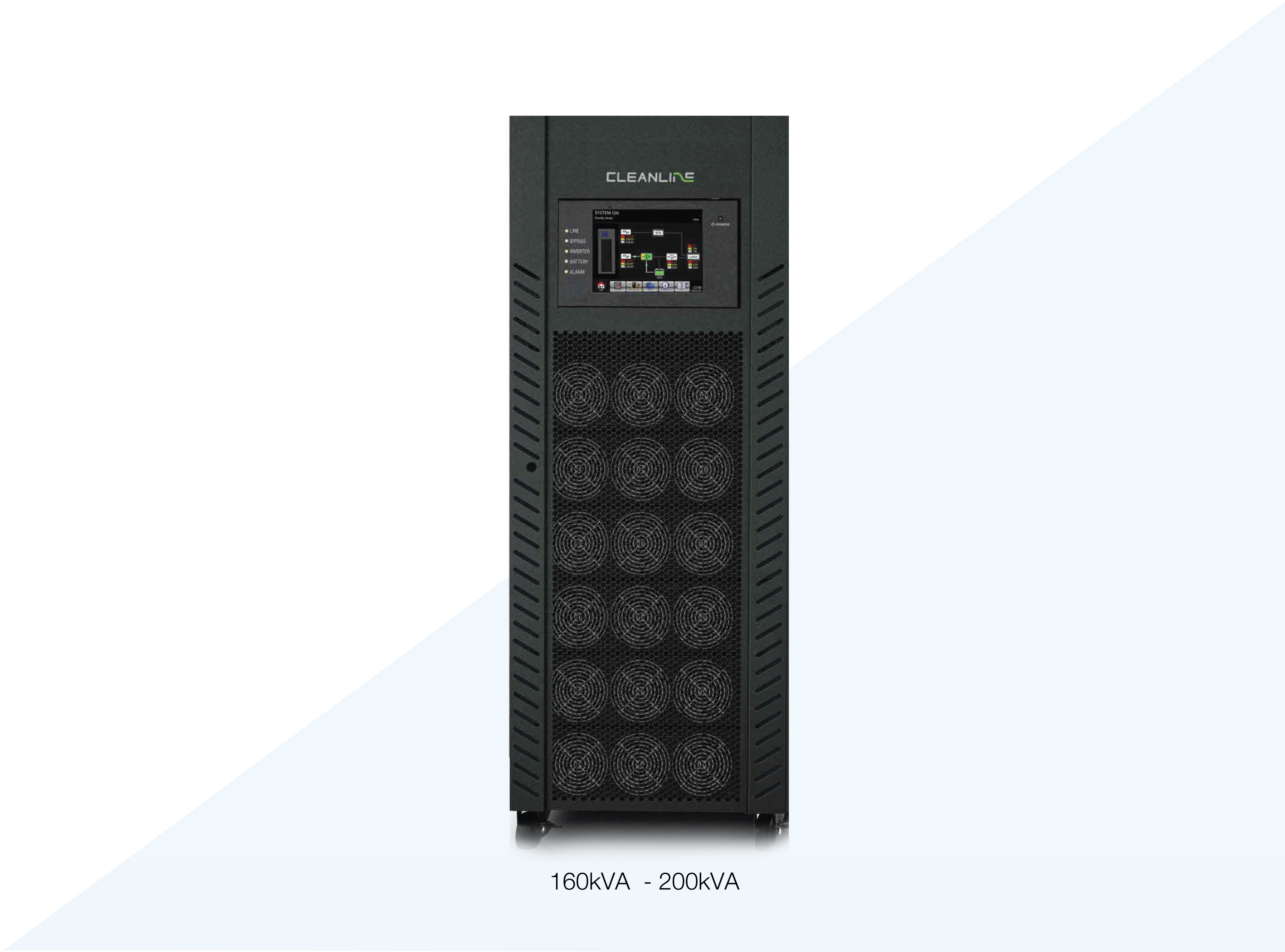

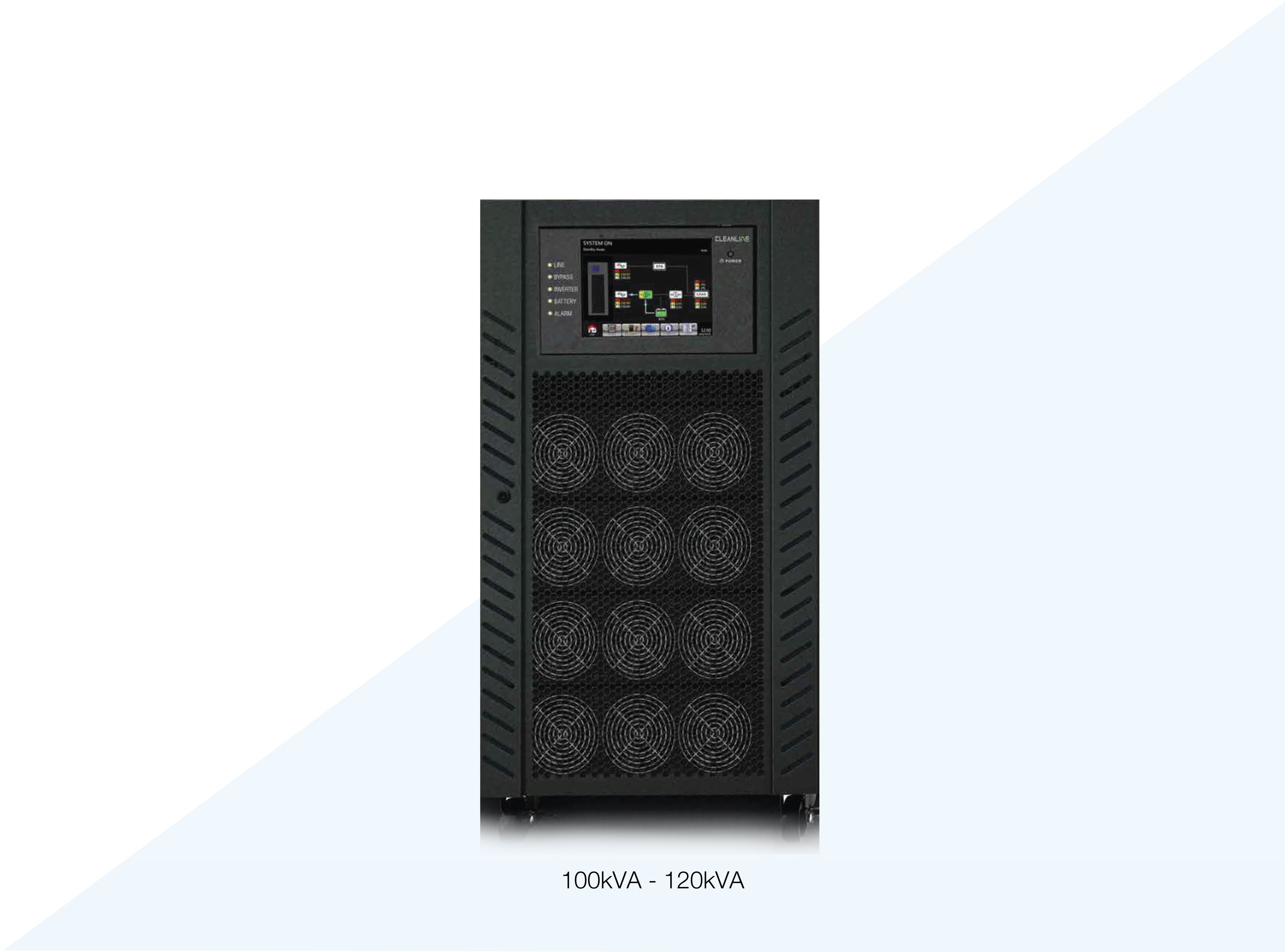

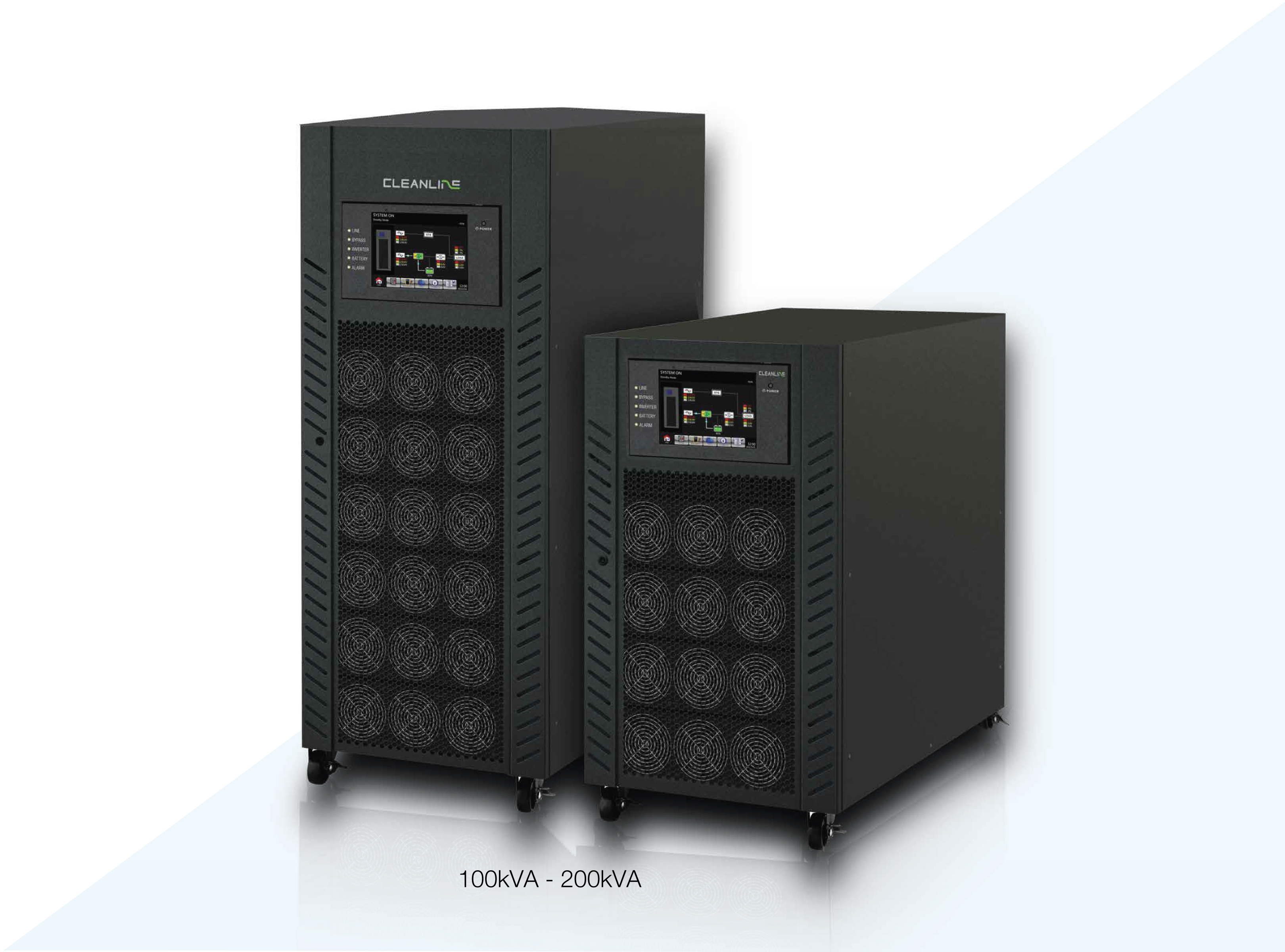

• T-100K33L 100kVA/90kW
• T-120K33L 120kVA/108kW
• T-160K33L 160kVA/144kW
• T-200K33L 200kVA/180kW

KEY Features:
•True double conversion with DSP technology
Double conversion between input/output, battery and
bypass are totally isolated power line noise, spike and
transients, keeping power faillure away from your critical loads.
•Output power factor 0.9
For critical applications, this 3-phase online UPS with
output power factor 0 ensures higher efficiency and
advanced performance.
•Active power factor correction in all phases
Power factor correction is active in all phases and
it can improve the efficiency of input.
•50Hz/60Hz frequency converter mode
Lock output frequency at 50Hz or 60Hz to suit power
sensitive equipments.
•ECO mode operation for energy saving
ECO mode improves the efficiency up to 98% to cut
energy usage & cost. In this mode, loads are supplied
by the mains directly. While mains faillure, the UPS will
constantly supply the power to the connected device
without any interruption.
•Emergency power off function (EPO)
In case of any emergency and fire, the EPO control mechanism
can instantly shut down the system.
•Optional parallel operation with common battery
The system can be operated in parallel, increasing the capacity
and performance. Besides, this parallel UPS system can share
common battery packs which might greatly reduce the expense
and reach the same performance.
•Smart battery charger design to optimize battery performance This UPS is equipped. with 3-stage charger for optimize battery
performance. This feature extends the useful service life of
battery and optimizes battery recharge time.
When UPS transfer to line mode from battery,
the battery current reduces slowly and AC current increase slowly.
•Power walk-in function
•10” touch LCD for T-100K33L-T-200K33L models
