GENERAL DATA

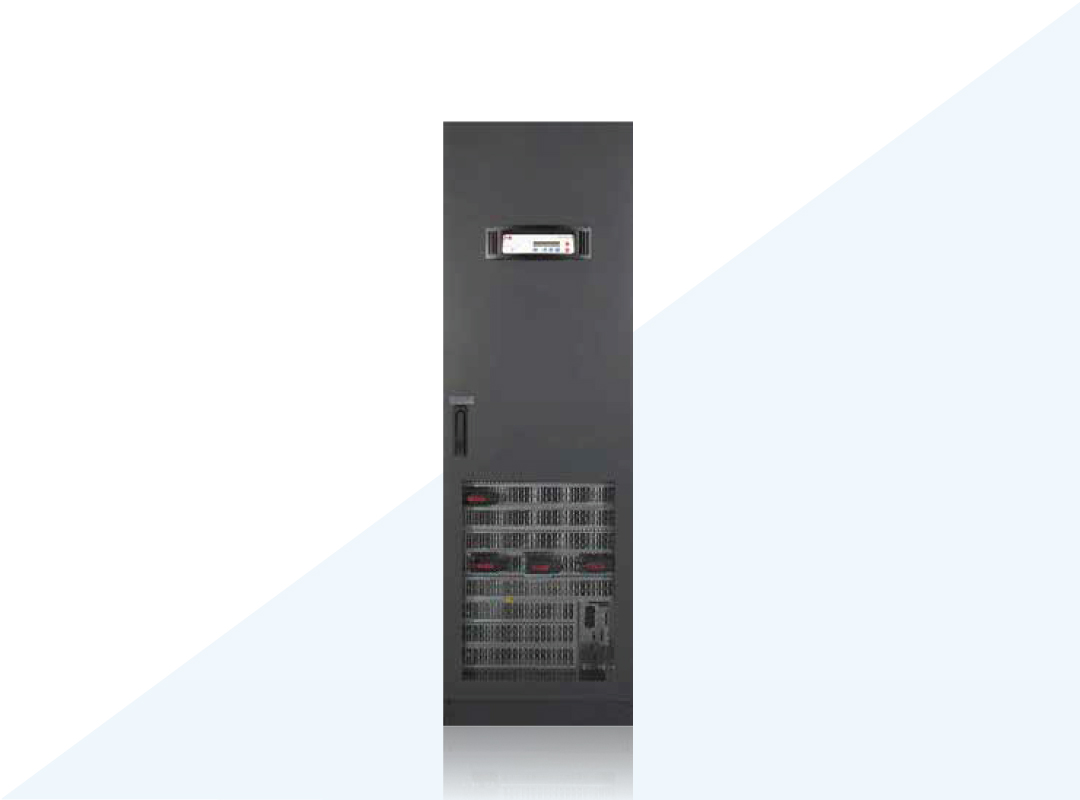

• PowerWave 33S 60kVA/60kW
• PowerWave 33S 80kVA/80kW
• PowerWave 33S 100kVA/100kW
• PowerWave 33S 120kVA/120kW

ABB has always set global standards in uninterruptible power
supply (UPS) solutions. The latest generation of PowerWave
33 Series 3 continues ABB’s tradition of applying stateof-
the-art technology to UPS products, and delivering the
best combination of energy efficiency and overall power
performance in the industry.
Offering maximum power protection, the PowerWave 33
Series 3 (S3) has a small footprint and uses less energy
than comparable products – thus delivering significant cost
savings for the user. The PowerWave 33 S3’s exceptional
design meets all the modern requirements involved in building
and operating energy-efficient and environmentally friendly
centers. The PowerWave 33 S3 employs transformer-less
double conversion UPS topology and is available in ratings
from 60 to 120 kW.
APPLICATIONS
–– Small – to medium-sized data centers
–– Office and building power protection
–– Process automation
–– Other critical processes

Highlights:

– Reliable double conversion UPS ensures the critical load
is never affected by utility disturbances.
–– High, 96 percent efficiency in double conversion mode
reduces running costs without compromising reliability.
–– Space-saving mechanical design has a footprint of only
1/3 m² and front-to-top airflow allows installation against
the wall.
–– Front service access reduces time needed for maintenance.
–– Up to 10 UPSs in parallel can give additional capacity
and/or redundancy.
–– Integrated system – this UPS has a maintenance bypass
switch, single or dual input feed configurations as well as
other features, integrated into the system.
–– Highly flexible battery configuration supports usage of
42-48 battery blocks in a string. This allows optimizing the
battery and reduces the need to oversize.

Perfectly reliable
The PowerWave 33 S3 has true online double conversion
technology that continuously conditions incoming power to
eliminate spikes, swells, sags, noise and harmonics, ensuring
that the critical load is at no point affected by any utility
disturbances.

Highly efficient
Top-of-market 96 percent efficiency in double conversion
mode reduces running costs without compromising reliability.
This UPS has a very flat efficiency curve so high efficiency is
reached at low load levels.

GENERAL DATA

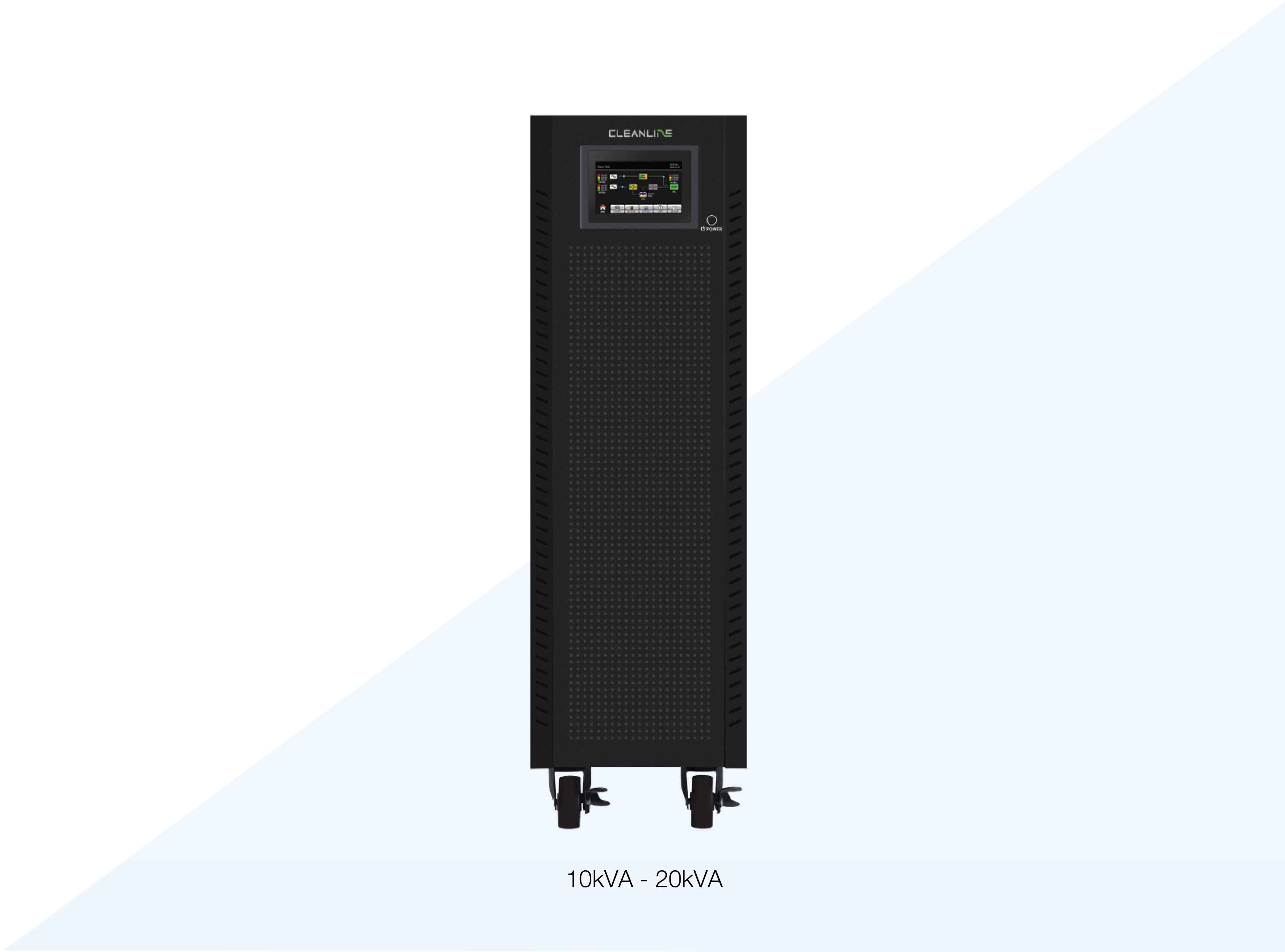

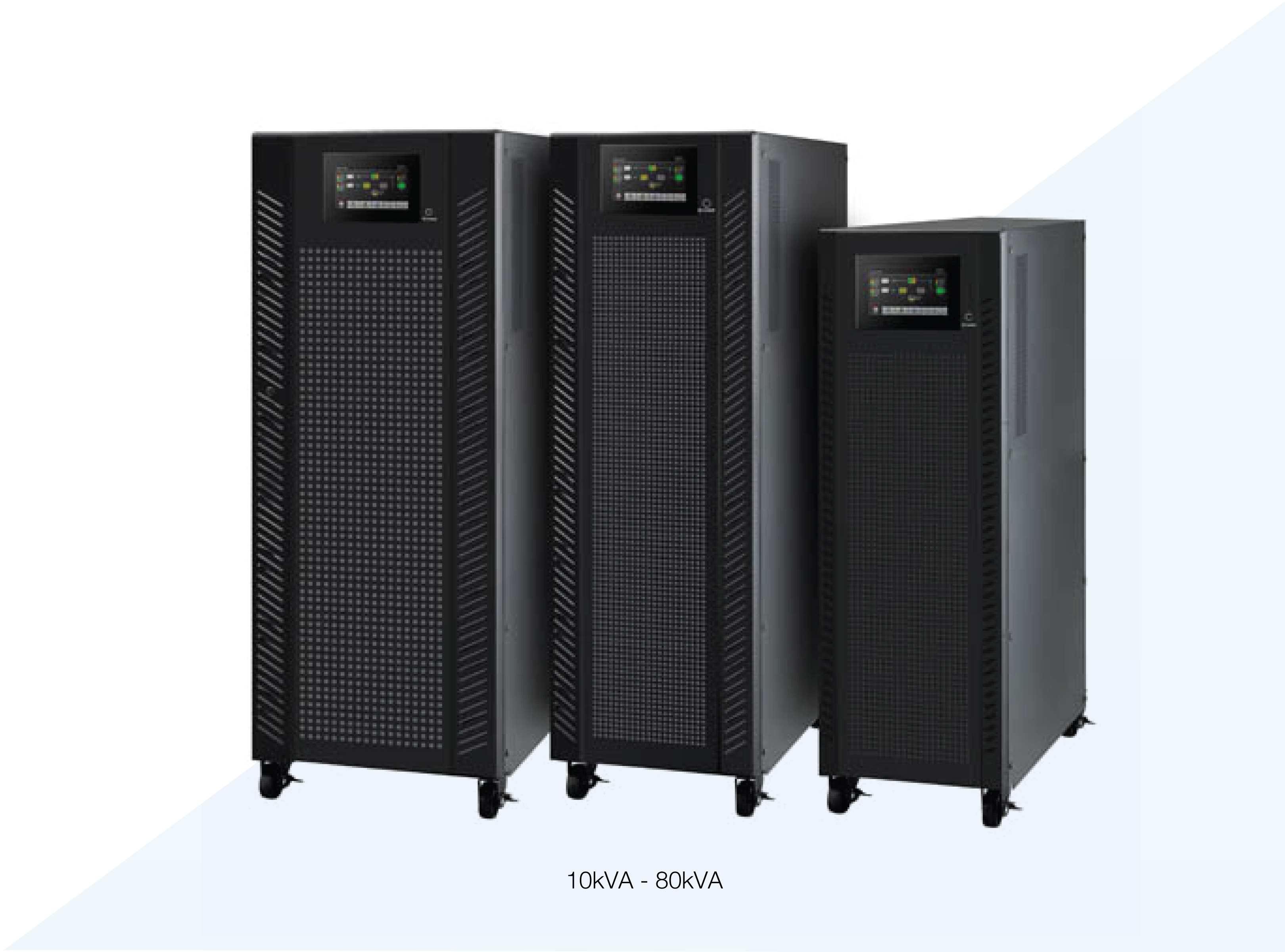

• T-10K33LV2 10kVA/10kW
• T-15K33LV2 15kVA/15kW
• T-20K33LV2 20kVA/20kW

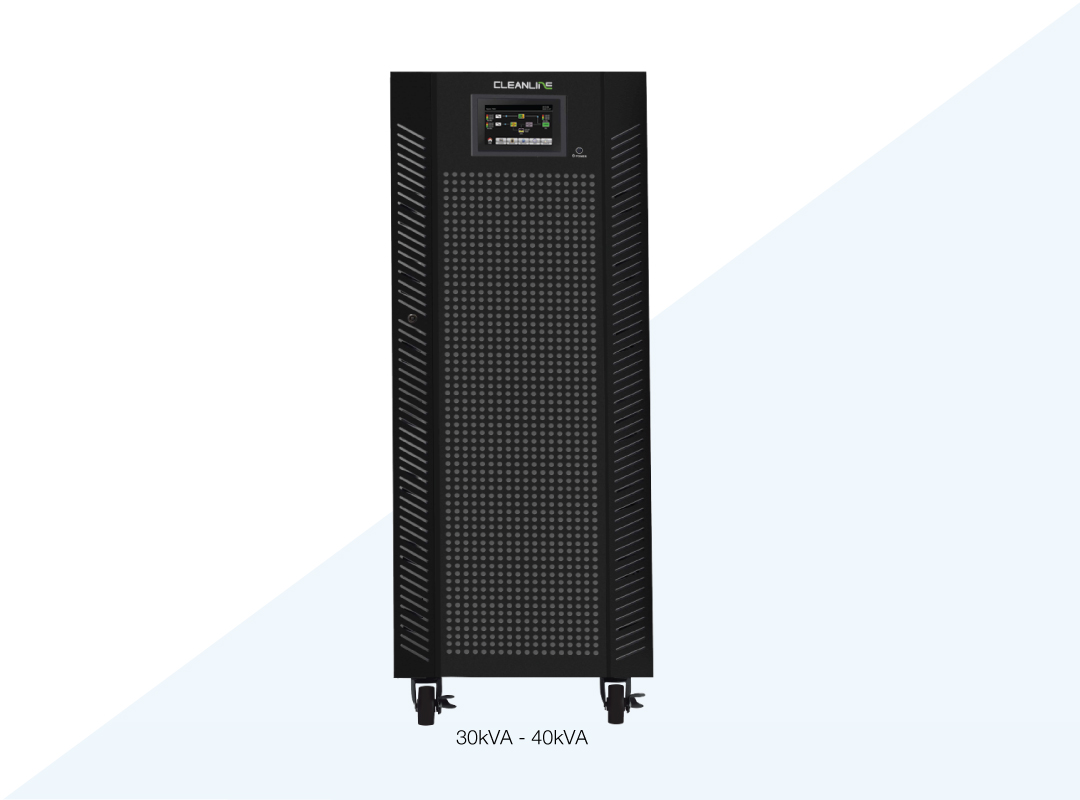

• T-30K33LV2 20kVA/30kW
• T-40K33LV2 40kVA/40kW

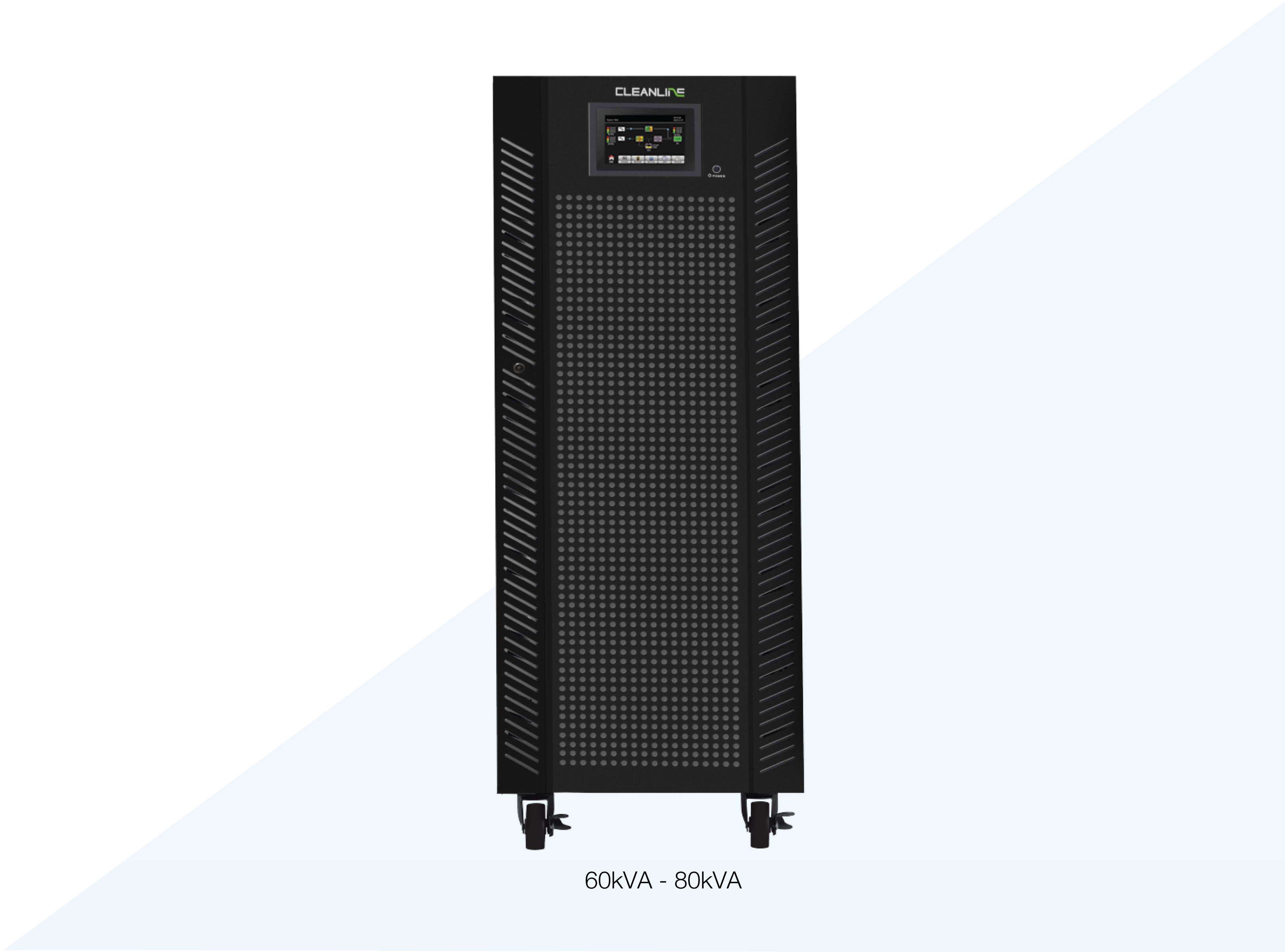

• T-60K33LV2 60kVA/60kW
• T-80K33LV2 80kVA/80kW

Features:

• True double conversion with DSP technology
Double conversion between input/output, battery and
bypass are totally isolated power line noise, spike and
transients, keeping power faillure awayfrom your critical loads.
• Output power factor 1
For critical applications, this 3-phase online UPS
with output power factor 1.0 ensures higher efficiency
and advanced performance.
• Active power factor correction in all phases
Power factor correction is active in all phases and
it can improve the efficiency of input.
• 50Hz/60Hz frequency converter mode
Lock output frequency at 50Hz or 60Hz to suit power
sensitive equipments.
• ECO mode operation for energy saving
ECO mode improves the efficiency up to 98% to cut
energy usage & cost. In this mode, loads are supplied
by the mains directly. While mains faillure, the UPS will
constantly supply the power to the connected device
without any interruption.

• Emergency power off function (EPO)
In case of any emergency and fire, the EPO control mechanism
can instantly shut down the system.
• Optional parallel operation with common battery
The system can be operated in parallel, increasing the capacity
and performance. Besides, this parallel UPS system can share
common battery packs which might greatly reduce the expense
and reach the same performance up to 6 units.
• Smart battery charger design to optimize battery performance
This UPS is equipped. with 3-stage charger for optimize
battery performance. This feature extends the useful service
life of battery and optimizes battery recharge time.

• 5” touch LCD for T-10K33LV2 – T-80K33LV2 models
